Nneɛma a Wɔyɛ no Ho Nsɛm

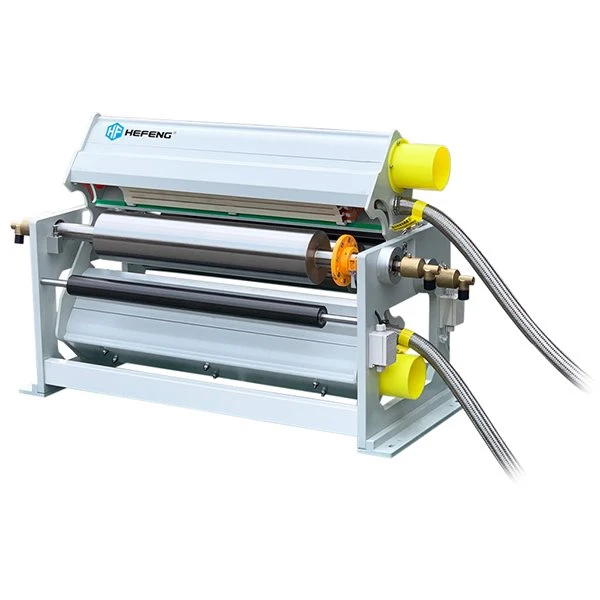

Wɔayɛ no sɛnea ɛbɛyɛ a wɔbɛkɔ so ayɛ inline integration, Extruded Pipe Corona Treater no ma polymer ani ahoɔden kɔ soro sen 38 dynes/cm denam high-frequency anyinam ahoɔden a ɛtwetwe so, hwɛ hu sɛ ɛbɛbata ho daa ama high{2}}speed industrial printing, coding, ne adhesive bonding wɔ plastic profiles ne tubing so.
Nsɛm a Wɔakyerɛkyerɛ Mu Titiriw
|
Mfiridwuma Ho Nsusuwii |
Nsɛm a Wɔakyerɛkyerɛ Mu |
|
Tumi a Wɔde Fi Mu |
1 kW kosi 6 kW (Wɔtumi sesa) . |
|
Pipe Diameter Range a Ɛwɔ Hɔ |
10 mm kosi 300 mm OD |
|
Mpɛn dodow a Wɔde Di Dwuma |
15 kHz kosi 25 kHz Resonance-Wɔahyia |
|
Input Tumi a Wɔde Ma |
380V / 480V, 3-Ɔkwan, 50/60 Hz |
|
Electrode Mframa-Gap Pɛpɛɛpɛ |
Micrometer Nsakrae (0.1 mm abodwokyɛre) . |
|
Line Ahoɔhare Tumi |
5 m/simma kosi 150 m/simma |
|
Exhaust Nkitahodi Nkitahodi |
Standard 100 mm Kɔla Ntrɛwmu |
Core Engineering & Nneɛma a Ɛwɔ Hɔ
Resonance-Matched Solid-Tebea Generator: Ɔde ne nsa kyerɛɛ ne so.Kɔ so kura arc suppression a ɛyɛ den ne tumi density a ɛkɔ so daa wɔ line ahoɔhare a ɛsakrasakra a thermal drift nni mu.
Pɛpɛɛpɛ Ceramic Electrode Cartridges:Ɛgyina atopaeɛ a ɛkɔ so yɛ kɛseɛ-voltage ano, ɛko tia thermal shock ne dielectric puncture wɔ multi-shift runs mu.
Ozone a Wɔde Yi Nneɛma a Wɔaka abom:Ɛkyere by-product gas tẽẽ wɔ beae a wɔtow gu no denam nhyɛso bɔne so de bɔ adwumayɛbea mframa pa ho ban.
Pivoting Station Adan a Wɔde Ma:Bue koraa wɔ extrusion axis no so ma ɛyɛ ntɛm string-up ne daa nsiesie kwan.
Station Nsiesiei & Geometry
Discharge Array Nsusuwii:Semi-cylindrical conformable electrode modules hyia abɔnten diameters pɔtee bi de hwɛ hu sɛ ɛyɛ pɛ 360-degree soro nsakrae.
Asase so Mmoa Nhyiam:Silicone-sleeved aluminium support rollers a wɔde ahyɛ precision bearings so no yi akyi ayaresa ne substrate slippage fi hɔ.
Ɔkwan a Wɔfa so Siw Gap So:Mfiri a wɔde gyina screws ne visual indicator gauges siw operator over-nsiesie ne substrate hyew-fa so.
Substrate Nneɛma a ɛne ne ho hyia
Polyethylene (PE / HDPE / LDPE) a ɛwɔ nipadua no mu.Stabilizes low surface tension polymers ma high-nsonsonoe inkjet coding ne ɔhyew-stamping dwumadie.
Polypropylene (PP) a ɛyɛ den sɛ:Enhances polarity wɔ rigid ne corrugated profiles ma ntɛm ara label bonding.
Polyvinyl Chloride (PVC) a wɔde yɛ aduru a wɔfrɛ no Polyvinyl Chloride:Ɔsesa conduit surfaces a ɛyɛ mmerɛw na ɛyɛ den ansa na wɔakɔ so atintim ahoɔhare kɛse-ahoɔhare kɛse.
Mfiridwuma mu Nneɛma a Wɔde Yɛ Nneɛma:Ɔsa kar tubing titiriw (PA, TPU, PVDF) wɔ extrusion ahoɔhare a ɛkorɔn.
Line Ahoɔhare & Dynamic Control
Ahoɔhare-Nsakrae a ɛne ne ho hyia:Ɛne nkitahodi tẽẽ kɔ incremental extrusion line encoder, scaling kilowatt output de toto line velocity.
Ahoɔhare Range a Wɔde Di Dwuma:Adwumayɛ a ɛyɛ den fi mita 5 simma biara kosi mita 150 simma biara.
Ɔhyew a Wɔde Di Dwuma:Mframa a wɔhyɛ -mframa a ɛyɛ nwini no siw ɔhyew a ɛkyinkyim wɔ thermoplastic tubing a ɛwɔ ɔfasu a ɛyɛ tratraa so bere a wɔreyɛ adwuma no.
Mfiridwuma mu Nneɛma a Wɔde Di Dwuma
Pipe ne Conduit Coding:Ɔbɔ batch nɔma a ɛtra hɔ daa ne date code ahorow ho ban wɔ anyinam ahoɔden nhama ne nsu a wɔde ma ho nsu afiri so.
Kar Nhama a Wɔde Yɛ Nhama:Siesie under-hood ahobammɔ corrugated tubing ma identification marking ne tape wrapping.
Aduruyɛ Tubing a Wɔyɛ:Ɔsesa catheter ne infusion tube no ani ansa na wɔayɛ solvent bonding ne inline printing.
Kuadwuma mu Nsuo a Ɛtɔ Nsuo:Ɛma wotumi yɛ calibration agyiraehyɛde a emu da hɔ wɔ kuayɛ polyethylene hoses a ahoɔhare kɛse wom so.
Nneɛma a Wɔde Yɛ Adwuma & OEM Nkabom
Radius Mfiridwuma:Custom-milled ceramic electrode shells a wɔayɛ no sɛnea ɛbɛyɛ a ɛne paipu akyi ntwemu pɛpɛɛpɛ fi mm 10 kosi mm 500 bɛyɛ pɛ.
Enclosure Footprint: Ɔde ne nsa kyerɛɛ ne so.Compact standalone cabinets anaa bridge-mount nhyehyeɛ a wɔasi ama mmeaeɛ a wɔabara wɔ cooling tanks ne puller units ntam.
Nkitahodi Ho Nhyehyɛe:Modbus TCP, Profinet, anaa hardwired dry-nkitahodi nkabom ma centralized PLC line control.
Multi-Track Nsiesiei:Multi-filament parallel ayaresa ti a wɔahyehyɛ ama bere koro mu dual-line extrusion nhyehyɛe.
Installation & Commissioning Akwankyerɛ
Mfiri a Wɔde Yɛ Anchoring:Bolt-down base plates a wɔde vibration-isolation pads a ɛne standard extrusion shop floor layouts hyia.
Ahobammɔ Nkitahodi:Hardwired circuit integration a ɛka extrusion line ntɛmpɛ gyinabea ne line-speed standstill monitors ho.
Exhaust Ducting Hookup a Wɔde Yɛ Nneɛma:Direct nkitahodi interface ma facility mfinimfini exhaust extraction nhyehyɛe ahorow.
Validation Protocol: Nsɛm a Wɔahyehyɛ:Dyne pen sɔhwɛ kum wɔ bere a edi kan mfiase de hwɛ sɛ botae no ani ahoɔden thresholds.
Ɔkwan a Wɔfa so Paw & Sizing
Bu Watt-Density ho akontaa:Fa line ahoɔhare (m/min) bɔ ne tɛtrɛtɛ a wɔayɛ ho adwuma (cm) na fa generator ahoɔden (kW) kyɛ mu na ama woahu anyinam ahoɔden a wɔhwehwɛ.
Match Electrode Geometry a Wɔde Di Dwuma:Paw stationary ring electrodes ma symmetric round profiles anaa flat-plate arrays ma afã horow a ɛyɛ den.
Reserve Capacity Margin: Ɔde ne nsa kyerɛɛ ne so, na ɔde ne nsa kyerɛɛ ne so.Paw generator ahoɔden rating a 20% reserve boro maximum calculated throughput de bu akontaa ma polymer grade nsakrae.
Ahunmu Anohyeto Nhwehwɛmu:Sua kwan a ɛwɔ hɔ a ɛda vacuum sizing tank ne caterpillar haul-off unit ntam de kyerɛ station tenten a wɔma ho kwan.
Packaging & Logistics Nsɛm a Wɔakyerɛkyerɛ Mu
Crating a Wɔde Kɔ Amannɔne:ISPM 15 a ɛne ɔhyew hyia-nnua nnaka a wɔatoto mu a wɔde nsuo-akwanside krataa ne shock-absorbent foam bracing ahyɛ mu ma.
Nneɛma a Wɔakyekyɛ Mu:High-frequency generator units a wɔahyɛ no ma wɔ anti-static, wim tebea-ahyɛ mu nsukorade mu a ɛtetew ne ho fi mfiri ayaresa mmeae.
Nwoma a Wɔde Yɛ Adwuma:Mfiridwuma ho nwoma a wɔayɛ no den ne digyital a anyinam ahoɔden ho nhyehyɛeɛ, nneɛma a wɔde yɛ adwuma a wɔakyerɛw, ne adansedie nkrataa a ɛkyerɛ sɛ wɔdi mmara so.
Nsɛm a Wɔtaa Bisa
Asɛmmisa: Ɔkwan bɛn so na line ahoɔhare a ɛsakrasakra no ka ayaresa no su?
A: Solid-state generator no di nkitaho tẽẽ kɔ incremental line encoder, automatically modulating power output wɔ real-bere mu de kura watt-density a ɛkɔ so daa wɔ mita ahinanan biara mu.
Asɛmmisa: Dɛn ne nkwa nna a wɔhwɛ kwan sɛ ceramic electrode ahorow no bɛtra?
A: Wɔ adwumayɛ tebea horow a ɛfata a wɔayɛ nhyehyɛe sɛ wɔbɛtew mframa mu kwan mu no, dɔte a wɔde yɛ dielectric electrode ahorow no de nnɔnhwerew 20,000 kosi 30,000 a wɔde yɛ adwuma ma ansa na wɔasesa.
Asɛmmisa: Ɔkwan bɛn so na wɔhwɛ ozone so bere a wɔreyɛ adwuma no?
A: Nhyɛso bɔne-nhyɛso a wɔaka abom a ɛma mframa fi mu twetwe ozone fa alumina catalyst destruction filter mu, na ɛtew dodow a ɛwɔ adwumayɛ mu ahobammɔ ahwehwɛde ase ansa na abrɛ ase.
Asɛmmisa: So saa nhyehyɛe yi betumi ayɛ nsu afiri a ɛma nsu fa mu anaa aluminium-afrafra paipu ho adwuma?
A: Yiw, wɔahyehyɛ dielectric-kataa asase so nhoma mmobɔwee titiriw sɛnea ɛbɛyɛ a ɛbɛyɛ multi-layer composite pipes a emu anaa akyi aluminium akwanside layers wom ho adwuma.
Asɛmmisa: Da biara da nsiesie bɛn na ɛho hia?
A: Da biara da dwumadi ahorow hwehwɛ sɛ wɔde feeler gauge hwehwɛ electrode gap no mu, de isopropyl alcohol popa dielectric no ani de yi mfutuma a ɛwɔ mframa mu no fi hɔ, na wɔhwɛ mframa a ɛsen no mu nsu a ɛyɛ nwini no mu.
